SEGUE 3S VERTICAL MIXER – PULL-TYPE

Agricultural Machinery
Segue
FEED MIXERS

The Segue 3S Pull-Type has a maximum payload of 6,000 lbs (2,722 kg), struck capacity of 231 ft³ (6.5 m³) or 275 ft³ (7.8 m³) with tub extension, and requires 50 horse power (37 kW).

The Segue line is built by Supreme in our Alberta factory with the same expectations for quality and performance. With standard options like a 44W steel tub, roller chain conveyor with stainless steel top pan, twin oil reservoirs, and a DG or Digi-Star scale system, you get all the features you need to maximize your operation’s feeding performance. You won’t believe the value and performance of the Segue line – ask your local Supreme dealer today.



Minimum Power Requirements: 50 hp / 37 kW
Unit Capacity: Struck Capacity: 231 ft³ / 6.5 m³, Capacity with Extension: 275 ft³ / 7.8 m³
Tires: 12.5L-15, 12 Ply Rated Hwy Tires
Empty Weight: 5,240 lbs / 2,377 kg
Max Payload: 6,000 lbs / 2,722 kg

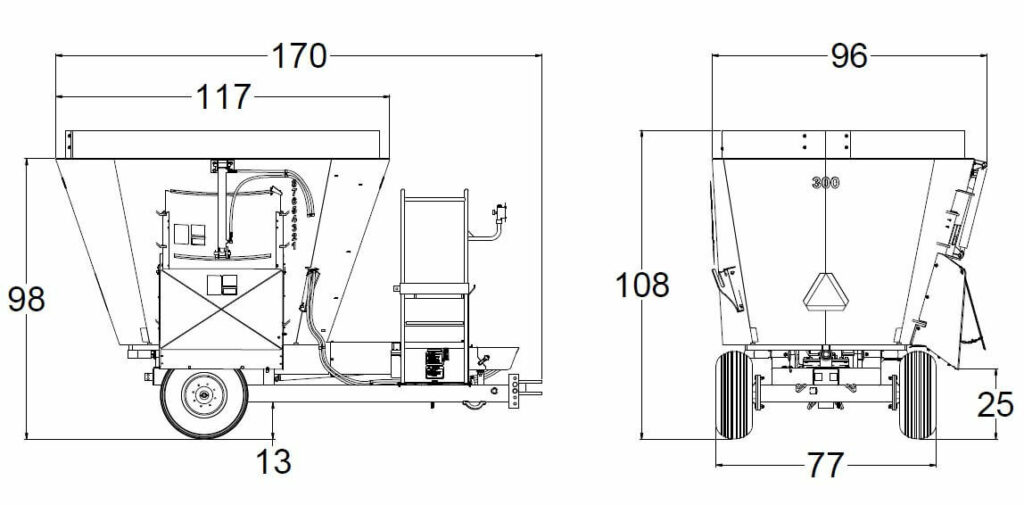

Dimensions: Height: 98” / 249 cm, Height w/ 10” Extension: 108” / 274 cm, Overall Width: 96” / 244 cm, Overall Length : 170” / 432 cm
Drive / rpm PTO: 540 rpm PTO Heavy-Duty, Two-Stage Planetary Drive
Standard Discharge Ground Clearance: Fixed Chute: 25” / 64 cm, 21” Fixed: 34” / 86 cm, 36” Folding: 41” / 104 cm, 44” Folding: 44” / 112 cm
Number of Knives : 4 Replaceable Forage Cutting Blades
Conveyor: Left or Right Side Door w/ Drop Chute
Floor Thickness: 5/8” M/S Floor
Wall Thickness: 1/4” M/S Walls
Standards Specifications: One Patented Freestanding Vertical Cutting Auger, Manual Restrictor Plates, Viewing Platform, Scale System, Oil Reservoir, 5/8” AR200 Auger Flighting, Removable Hitch Jack, PPI301-V3 Hitch
