Agricultural Machinery

The SEG9T Pull-Type has a maximum payload of 24,000 lbs (10,886 kg), struck capacity of 731 ft³ (20.7 m³) or 841 ft³ (23.8 m³) with tub extension, and requires 130 horse power (97 kW).

The Segue line is built by Supreme in our Alberta factory with the same expectations for quality and performance. With standard options like a 44W steel tub, roller chain conveyor with stainless steel top pan, twin oil reservoirs, and a DG or Digi-Star scale system, you get all the features you need to maximize your operation’s feeding performance. You won’t believe the value and performance of the Segue line – ask your local Supreme dealer today.

Minimum Power Requirements: 130 hp / 97 kW
Unit Capacity: Struck Capacity: 731 ft³ / 20.7 m³, Capacity with Extension: 841 ft³ / 23.8 m³
Tires: (4) 11R/22.5in 16 Ply Truck Tires With Budd Wheels & HD Axle
Empty Weight: 14,347 lbs / 6,508 kg
Max Payload: 24,000 lbs / 10,886 kg
Dimensions: Height: 117″ / 297 cm, Height w/ 10″ Extension: 127″ / 323 cm, Overall Width: 123″ / 312 cm, Overall Length : 273″ / 693 cm
Drive / rpm PTO: (2) Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 30″ / 76 cm, Dogleg: 44″ / 112 cm, Ext. Dogleg: 55″ / 140 cm, 42″ Folding: 53″ / 135 cm, 54″ Folding: 60″ / 152 cm
Number of Knives : (10) Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 10’ Flat Conveyor
Floor Thickness: 3/4” / 19 mm M/S Floor
Wall Thickness: 1/4” / 6 mm M/S Walls

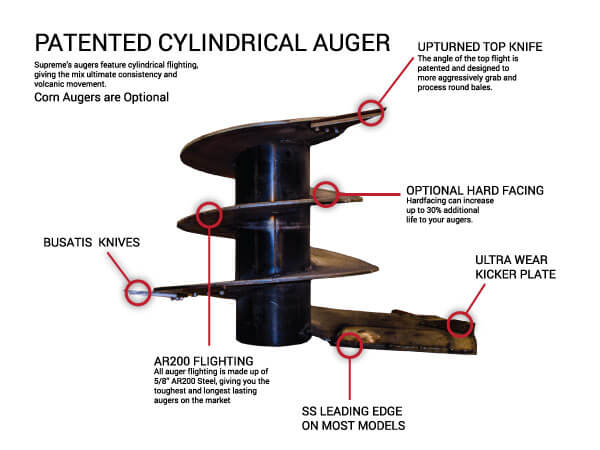

Standards Specifications: SS Auger Outer Edge, Two Patented Freestanding Vertical Cutting Augers, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 4 pt Scale System, Independent Oil Reservoirs, SS Conveyor Top Pan
