JCB 532-70 AGRI LOADALL
Introducing our range of agriculture telehandlers. Choose between the AGRI, AGRI SUPER and top of the range AGRI PRO model.

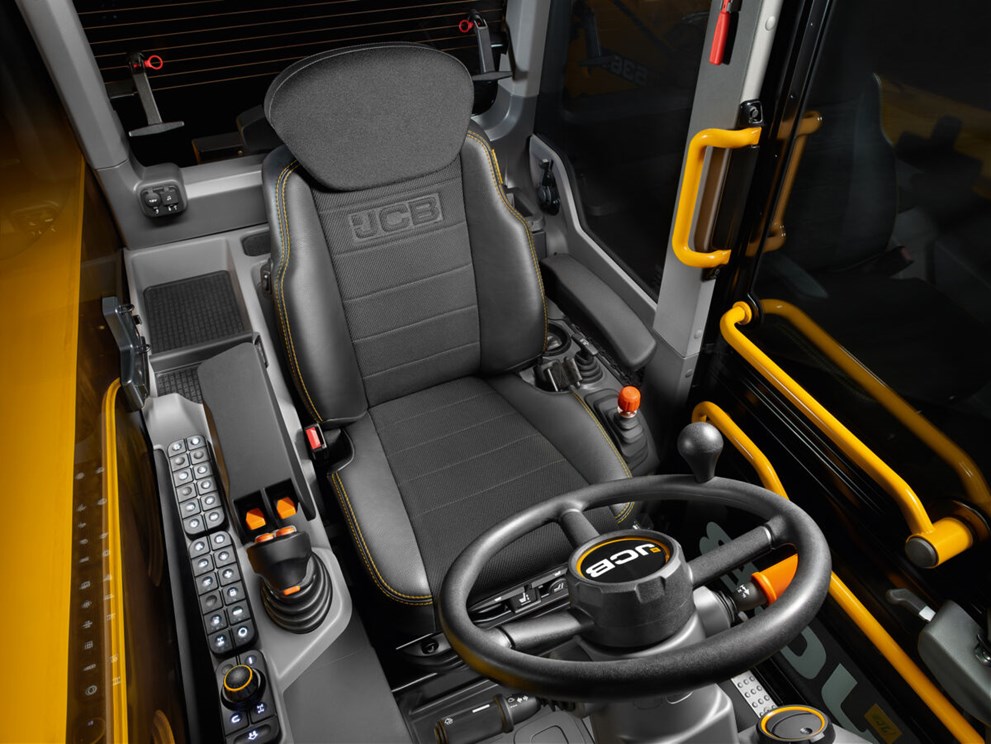

Our all-new CommandPlus cab provides farm operators with the ultimate driving experience.
- 12% increase in size to give best-in-class cab volume.
- 50% reduction in cab noise to give a best-in-class 69dBA.
- 14% increase in upward visibility through new seamless one-piece curved glazing, to maintain best-in-class all-round visibility.
Product Specifications
Lift Capacity at Full Height 2,750 kg
Lift Capacity at Full Reach 1,675 kg
Max Engine Power 112 kW
Max Lift Capacity 3,200 kg
Max Lift Height 7 m
Max Speed 40 kph
OUR BEST PRODUCTIVITY
UNPARALLELED PRODUCTIVITY COURTESY OF SMART HYDRAULICS, SUPERIOR PERFORMANCE AND EFFICIENT DESIGN
- New increased lifting performance throughout the range.
- All-new CommandPlus cab provides operators of all shapes and sizes with a comfortable driving position and extra space, to help work productively with less fatigue over a long working day.
- Regenerative hydraulics harness gravitational forces for quicker boom lowering and retract.
- Hydraulic auxiliary venting releases pressure from inside and outside the cab for quick and safe agricultural attachment changeover.
OUR BEST FUEL EFFICIENCY
OUR JCB DIESELMAX ENGINE PROVIDES FUEL EFFICIENT MATCHING OF TRANSMISSION AND HYDRAULICS
- Legendary efficiency thanks to our proven JCB DieselMAX engine.
- Regenerative hydraulics harness gravitational force to reduce excessive revving of engine.
- ECO mode on Pro models allow the machine to use less engine revs during applications where full engine power is not needed.
- Best-in-class fuel efficiency of 5.97 litres per hour based on over 2.5 million machine hours in farms around the world.
OUR BEST HYDRAULICS
OUR SMART HYDRAULICS PACKAGE IMPROVES CYCLE TIME AND REDUCES FUEL CONSUMPTION
- Boom end damping improves material retention and makes for a smoother work cycle.
- Auto bucket control makes it easier to meter out or fully empty material from your bucket or manure fork via a feature button on the joystick.
- New hydraulic auxiliary venting system allows for internal and external pressure release for the front and rear hydraulic auxiliary service.
OUR BEST DRIVETRAIN
DESIGNED AND BUILT TO WORK SEAMLESSLY AND IN HARMONY ACROSS A WIDE RANGE OF AGRICULTURAL APPLICATIONS
- We are the only manufacturer of agricultural products to make our complete drivetrain for maximum performance and efficiency with harmonious operation of gearbox and engine.
- Widest range of engine to gearbox options from 109 hp to 145 hp (81kW to 112kW) and from 4-speed to 6-speed gearboxes all capable of 40kph.
- DualTech VT is the world’s only 2-in-1 transmission, giving a seamless transition from hydrostatic to powershift and is now available on the AGRI Pro model.
- Fleximode provides independent engine speed and ground speed control.
