• High-capacity belt baler for dry crops
• EasyFlow pick-up without cam track has few moving parts
• Integral feed rotor and integral rotor cutter ensure maximum throughputs
• XC cutting system for exact and smooth cuts
• Effective bale start and roll ensures perfect bales
• Exceptionally high densities
• Optional chute for convenient net roll changes
• Auto chain oiler and grease banks reduce time spent servicing

• EasyFlow pick-up without cam track has few moving parts
• Integral feed rotor and integral rotor cutter ensure maximum throughputs
• Blade cutting system on XC models for precision and smooth cuts
• Effective bale start and roll ensures reliable bale starts and perfect bale shapes
• Optional chute for convenient net roll changes
• Auto chain oiler and grease banks reduce time spent servicing

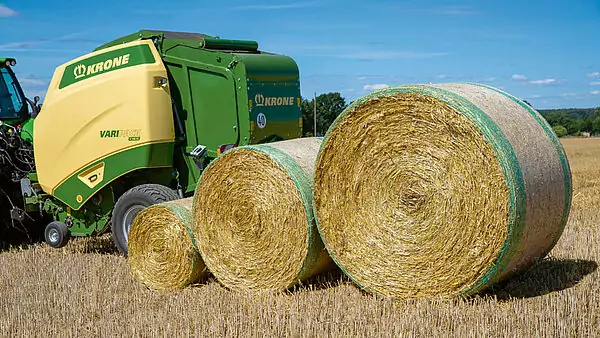

­KRONE VariPack is a belt baler that was specifically designed for baling dry crops. The design focuses on simple technology, high throughputs and high baling densities.

The KRONE EasyFlow pick-up

• A clean rake – 2.15 m pick-up for thorough and consistent rakes without losses „
• Safe – 6 mm thick double tines with large diameter coils „
• Durable and hard-wearing – few moving parts reduce wear to a minimum

The wide EasyFlow pick-up makes sure no haulm is left on the ground even in difficult conditions and when working at high speeds. Thanks to its clutter-free build that relies on only very few moving parts, the unit stands out for minimum wear and maximum longevity.

The gauge wheels

The pick-up runs on two gauge wheels the height of which is set easily and fast without the need of tools and simply by refitting a pin.

The crop press roller

The crop press roller supports the work of the pickup by detecting the size of the swath and preparing it for effective gathering. The height is altered on a simple mechanism for easy and fast use and adaptation to varying crops, swath volumes and work rates. This results in clean and thorough gathering.

Camless and good / Robust double tines

KRONE has purposely removed the cam track from the EasyFlow for controlling the tines. Instead of using many moving parts that are prone to wear, EasyFlow has special strippers that ensure the tine angle is always right the length ideal. Measuring 6 mm in diameter and mounted with large coils, the tines are particularly vigorous and hard-wearing. Narrowly spaced at 55 mm, they pick up also short haulmed and heavy crops thoroughly and without contamination.

The EasyFlow pick-up

The EasyFlow pick-up offers a 2.15 m work width for high hourly outputs. The robust double tines gather the material effectively and feed it in a very consistent flow to the feed rotor and rotor cutter. The spring-loaded EasyFlow provides perfect ground contouring even in the roughest terrain.

The KRONE Integral Rotor

• Versatile and flexible – choice of an integral feed rotor or an integral rotor cutter with 17 blades
• Powerful – the 530 mm rotor ensures massive throughputs
• Consistent flow – the rotor with integrated feed roller provides a uniform crop flow
• Precision cut – the best quality thanks to the rotor for controlled cuts
• Making things easy – the floor beneath the cut-and-feed assembly drops hydraulically for convenient removal of blockages

The integral rotor is available with or without a cutting system. Rugged by design, the unit performs dependably and reliability in challenging conditions. The integral rotor has feed augers integrated at its ends, a design that leads to a significant reduction of the number of moving parts. Fewer moving parts translate into better cleaning, less service and maintenance and a longer lifespan.

The drop floor

The floor under the cut-and-feed rotor drops at a flick of a button to remove blockages conveniently from the cab. With the floor down, the pto is operated to clear the blockage. Then the floor is raised again and baling continues.

The driveline

The pick-up and the integral rotor are driven by one shared 1 ¼inch chain. The simple and robust drive uses only few moving parts thus reduces wear and the time you spent servicing.

The compact design

Integrating the feed rollers in the rotor leads to a very consistent and dependable feed of material from the pick-up to the rotor – another boon for the overall crop flow and reliable machine performance.

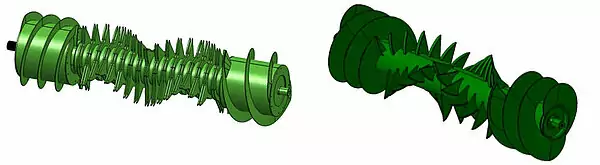

The Integral Rotor

VariPack has the feed auger integrated in both ends of the rotor cutter (left) and the feed rotor (right). This means that only one drive is required to power the pick-up and the rotor. Combining helical tines and augers on the same rotor optimises the material flow across the entire width of the rotor for high bale weights and perfect cuts.
