Standard L Series

Agricultural Machinery
KUBOTA
TRACTORS

L3200D / L3200HD / L3800D / L3800HD / L4600D / L4600HD

Kubota’s standard L Series utility tractors provide high performance, outstanding durability, easier operations and enhanced comfort. This heavy duty tractor range not only performs – but also features modern design touches with smooth, rounded contours from front to rear that also improve visibility so you can get the job done better and faster. Add to that, Kubota’s state-of-the-art front loader and backhoe options that simplify even tough tasks. Work hard, but do it with ease with the new Standard L Series tractors.

Engine

Indirect injection, 3 or 4-cylinder E-TVCS Kubota diesel engines generate enough horsepower to tackle the toughest jobs. Built to last, these workhorses delivers dynamic output and high torque, while significantly reducing vibration and noise with a built-in balancer.

Transmission

Your choice of reliable mechanical shuttle, synchro shuttle or HST transmission.

Gear drive transmission models enable you to select the right speed for higher productivity. The synchro shuttle shift lever on L4600D model is conveniently located at the left side of the seat allowing you to quickly and easily switch between forward and reverse. It’s particularly handy when performing tasks that require repetitive forward/reverse motions, like front loader work.

Kubota’s Feather-Step HST features a hydraulic servo system that increases pedal responsiveness, providing easy pedal-shifting operation for smoother performance and improved control, regardless of load size.

The Driver’s Seat

To provide maximum comfort, the L Series features a spacious operator platform. Its semi-flat design also makes getting on and off the tractors easier. The suspension seat offers a high level of comfort and is ergonomically designed to reduce fatigue, even after long workdays.

Hydraulics & PTO

The large capacity hydraulic pump and cylinder provide powerful lifting capacity, allowing you to use a wider range of implements. Category 1, 3-point hitch delivers over 651kg lift capacity on the L3200/3800 and 1053kg on the L4600.

The L4600 models feature user-friendly independent PTO, which let you operate the hydraulic independent PTO without using a clutch. Other features include a flip-up type PTO shield, top link holder, and telescopic stabilisers.

The L3200/L3800 HST models and the L3800 gear-drive model include a live, continuous-running rear PTO. The HST models also feature an over-running clutch on the PTO shaft to protect the transmission. Finally, a stationary PTO feature enables the use of various implements, such as pumps.

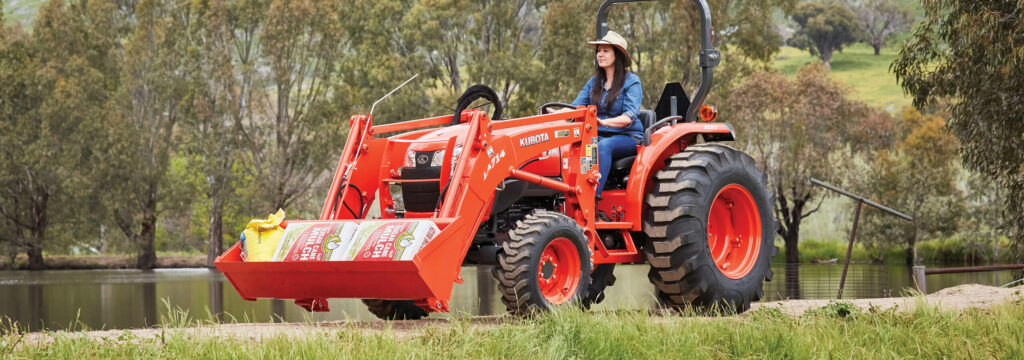

Front Loader

The LA524 and LA714 front loaders with curved boom design are specially designed to improve lifting power and height as well as offer long-lasting durability.

With Kubota’s innovative attaching/detaching system, you can attach and detach mounting pins so you can move from job to job with greater efficiency.

Backhoe

The new BH77 and BH92 Backhoes are performance matched with the L3200, L3800 and L4600 to deliver more power and greater capacity. And, thanks to the full-flat deck, the backhoes deliver optimal legroom for maximum operator comfort.

BH77 and BH92’s quick attach/detach mounting system makes attaching and detaching the backhoe a snap so you can quickly move on to your next job.

Backhoes available with 12″ and 18″ bucket sizes and hydraulic thumb option. Quick-attach convenience combined with full-mount subframe ensures sturdiness. Hydraulically actuated stabilisers offer enhanced stability.

OPTIONAL ATTACHMENTS AVAILABLE
