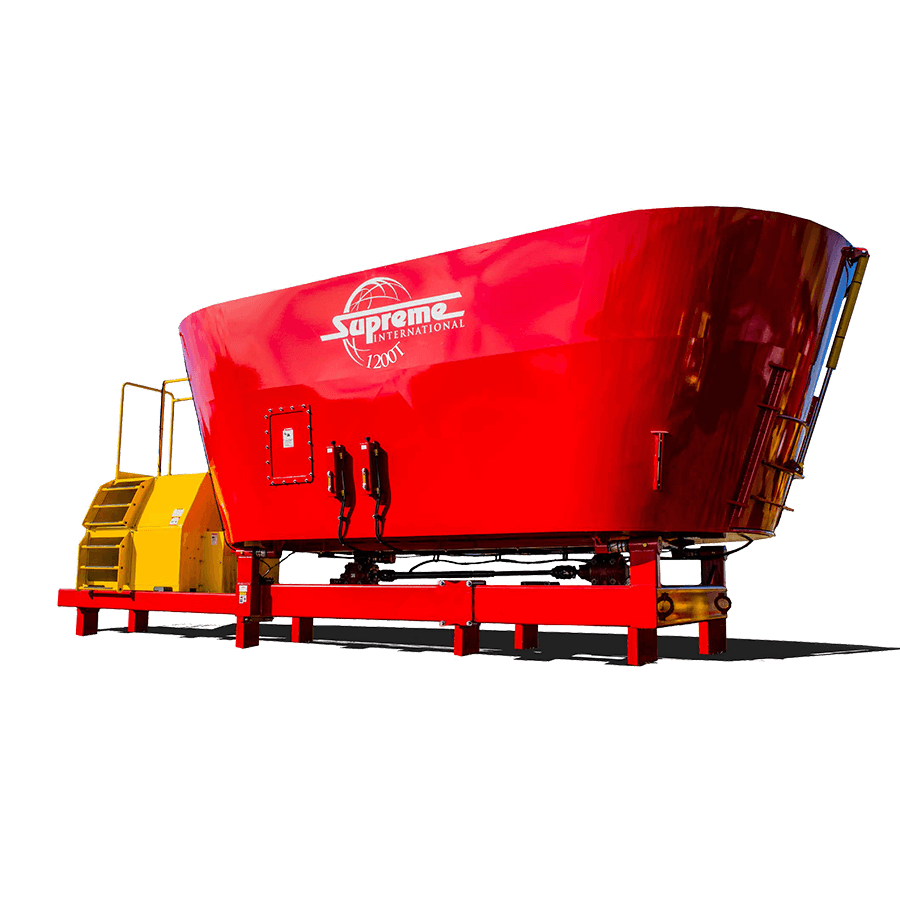

1200TSM MECHANICAL STATIONARY
Agricultural Machinery
Supreme International
FEED MIXERS
Listing Description
The 1200T Mechanical Stationary has a maximum payload of 40,000 lbs (18,144 kg), struck capacity of 935 ft³ (26.5 m³) or 1,075 ft³ (30.4 m³) with tub extension, and requires 200 horse power (149 kW).
An energy efficient way to mix your feed – mechanical drive can be powered by electric or diesel power. Like our Pull-Type models, our Mechanical Stationaries have robust heavy-duty planetary drives. All stationary models are equipped with end door and fixed chute for easy unloading of mixed wet or dry commodities. Various pedestal heights are available to fit each operation’s requirements.
Minimum Power Requirements: 200 hp / 149 kW
Unit Capacity: Struck Capacity: 935 ft³ / 26.5 m³, Capacity with Extension: 1,075 ft³ / 30.4 m³
Empty Weight: 21,323 lbs / 9,672 kg
Max Payload: 40,000 lbs / 18,144 kg
Dimensions: Height w/ 6” Pedestals: 114” / 290 cm, Height w/ 10” Extension: 124” / 315 cm, Overall Width: 103” / 262 cm, Overall Length: 335” / 851 cm

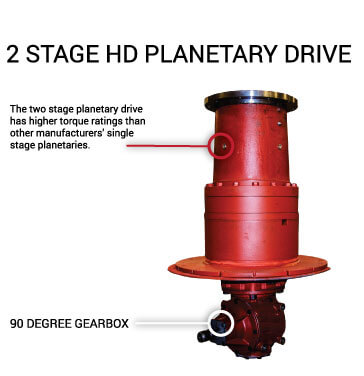

Drive / rpm PTO: Heavy-Duty Planetary Drives
Standard Discharge Ground Clearance: Fixed Chute w/ 6” pedestals: 21” / 53 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Rear Discharge Door
Floor Thickness: 1” / 25 mm M/S Floor
Wall Thickness: 1/4” / 6 mm AR200 Walls
Standards Specifications: 2 Patented Freestanding Vertical Cutting Augers, Manual Restrictor Plates, Ultra Wear Kicker Plates, Viewing Platform, 4-point Scale System, Tub Mounted Weight Repeater, 5/8” / 16 mm AR200 Auger Flighting, Independent Steel Oil Tanks
