24 FOOT DELIVERY BOX

Agricultural Machinery
Supreme International
DELIVERY BOX

The 24′ Delivery Box has a struck capacity of 1,108 ft³ (31.4 m³) or 1,252 ft³ (35.5 m³) with extension, and requires 300 horse power (224 kW).

Unlike any other delivery system on the market, the Supreme International Delivery Box has a revolutionary AUTO FEED FLOOR DRIVE that simplifies feeding on a new level.

With a pressure sensing floor that automatically moves based on ration type, the operator no longer has to control the floor speed. This is one less step that the feeder has to accommodate for, and instead only has to focus on opening the discharge door and controlling conveyor speed.

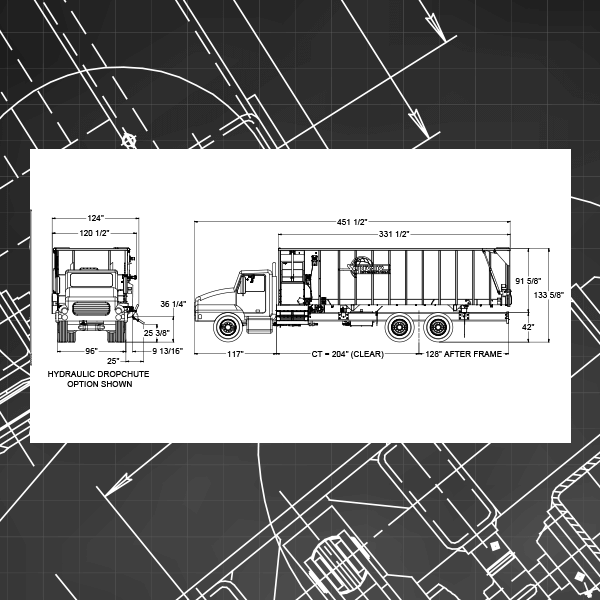

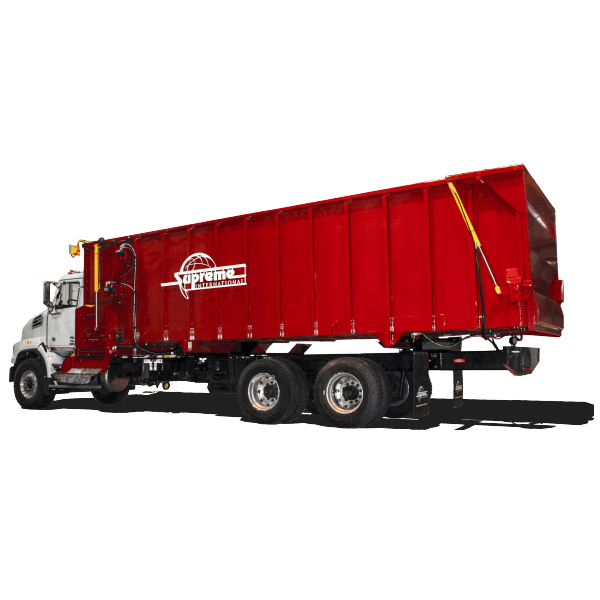

The End Dump option is shown in the model picture and the drawing below.

Minimum Power Requirements: 300 hp / 224 kW
Unit Capacity: Struck Capacity: 1,108 ft³ / 31.4 m³
Capacity with Extension: 1,252 ft³ / 35.5 m³
Tires: N/A
Empty Weight: 16,000 lbs / 7,257 kg
Max Payload: 40,000 lbs / 18,144 kg
Dimensions: Height: 92″ / 234 cm
Height w/ 12″ Steel Extension: 104″ / 264 cm
Overall Width: 124″ / 315 cm
Overall Length : 332″ / 843 cm
Drive / rpm PTO: N/A
Standard Discharge Ground Clearance: N/A
Number of Knives : N/A
Conveyor: N/A
Floor Thickness: 10 GA / 3.4 mm Stainless Steel Floor
Wall Thickness: 12GA w/ 12’’ Lower Side Wall Liner

Standards Specifications:

  • Easy Access Back End
  • Auto Feed Floor Drive” Selectable System for Each Separate Ration
  • 4 Pt. Scale System w/ In-Cab Scale, Mirror Mount and Weight Repeater
  • 2 Viewing Windows
  • Hydraulic Floor Chain Tensioner
  • Fixed End
  • Multi Function Joystick
  • 5.7″ High Resolution LCD Display
  • SS Conveyor Top Pan
  • Folding Ladder
  • Clean-out Auger
