24 FOOT PULL-TYPE DELIVERY BOX

Agricultural Machinery
Supreme International
DELIVERY BOX

The 24′ Pull-Type Delivery Box has a struck capacity of 1,108 ft³ (31.4 m³) or 1,252 ft³ (35.5 m³) with extension, and requires 180 horse power (224 kW).

Unlike any other delivery system on the market, the Supreme International Delivery Box has a revolutionary AUTO FEED FLOOR DRIVE that simplifies feeding on a new level.

With a pressure sensing floor that automatically moves based on ration type, the operator no longer has to control the floor speed. This is one less step that the feeder has to accommodate for, and instead only has to focus on opening the discharge door and controlling conveyor speed.

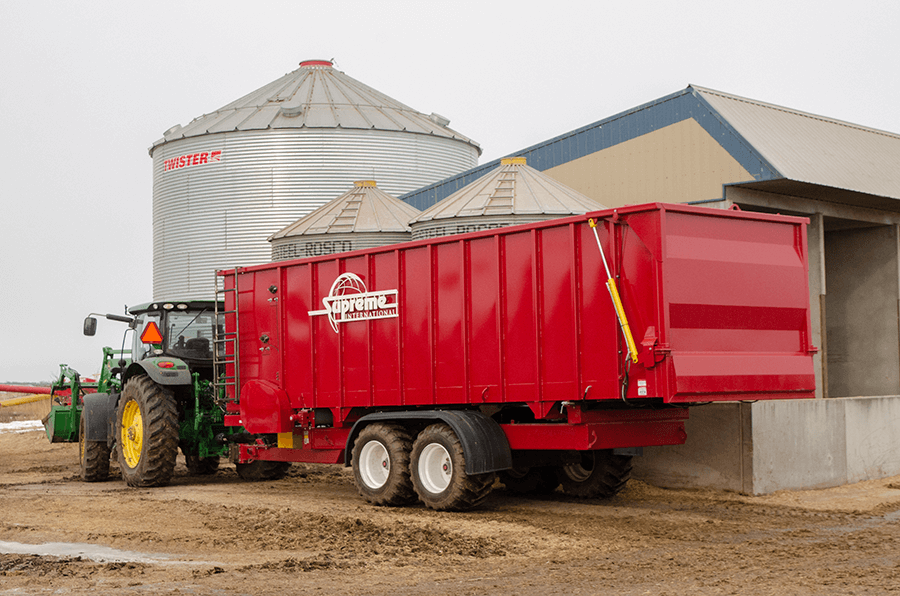

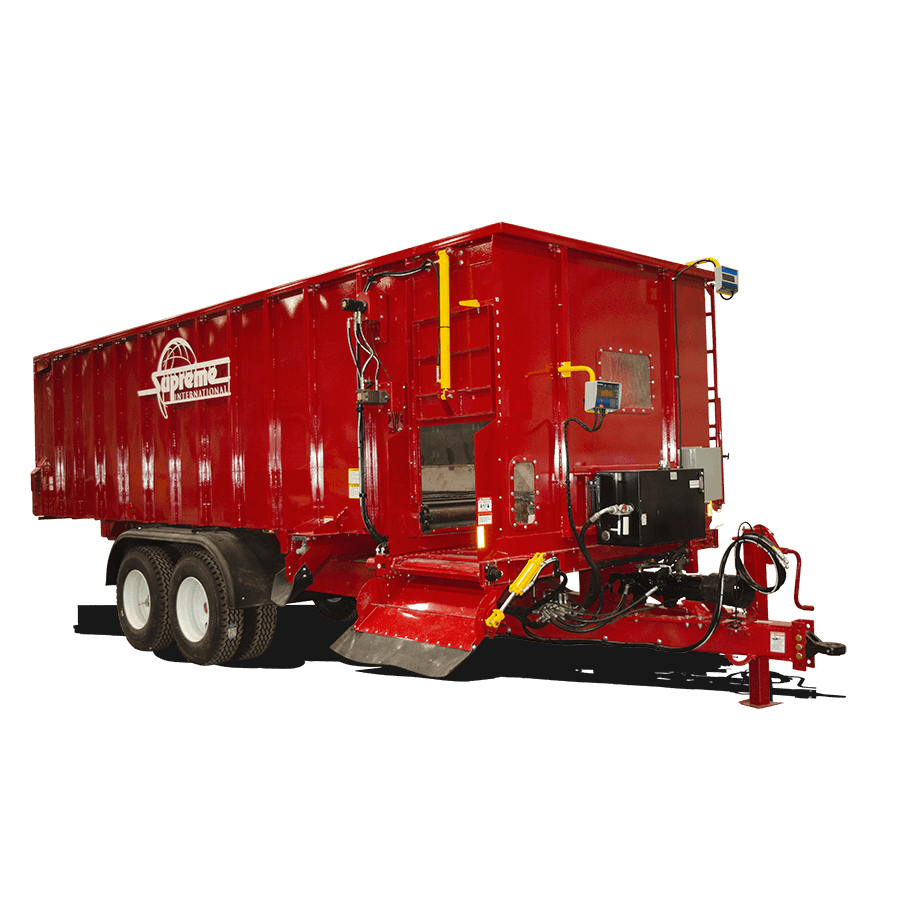

The End Dump option is shown in the model picture and the drawing below.

&Raquo; 24 Foot Pull-Type Delivery Box &Raquo;

Minimum Power Requirements: 180 hp / 134 kW
Unit Capacity: Struck Capacity: 1,108 ft³ / 31.4 m³, Capacity with Extension: 1,252 ft³ / 35.5 m³
Tires: Tandem Axle Walking Beam with (8) 11R22.5 Tires
Empty Weight: N/A
Max Payload: 40,000 lbs / 18,144 kg
Dimensions: Height: 131” / 333 cm Height w/ 12” Steel Extension: 143” / 363 cm Overall Width: 122” / 310 cm Overall Length : 368” / 935 cm
Drive / rpm PTO: 1,000
Standard Discharge Ground Clearance: 23” / 58 cm
Number of Knives : N/A
Conveyor: 9’ Flat Discharge Conveyor with Hydraulic Folding Dropchute
Floor Thickness: 10 GA / 3.4 mm Stainless Steel Floor
Wall Thickness: 12GA w/ 12’’ Lower Side Wall Liner
Standards Specifications: 10 GA / 3.4 mm Stainless Steel Floor w/ 12’’ Lower Side Wall Liner, Easy Access Back End, ”Auto Feed Floor Drive” Selectable System for Each Separate Ration, 4-point Scale System, 2 Viewing Windows, Hydraulic Floor Chain Tensioner, Fixed End, Removable Heavy-Duty Hitch Jack, Multi Function Controls, 5.7” High Resolution LCD Display, SS Conveyor Top Pan, Folding Ladder, Clean-out Auger, 1,000 RPM PTO, 12V Battery, Articulating Hitch
