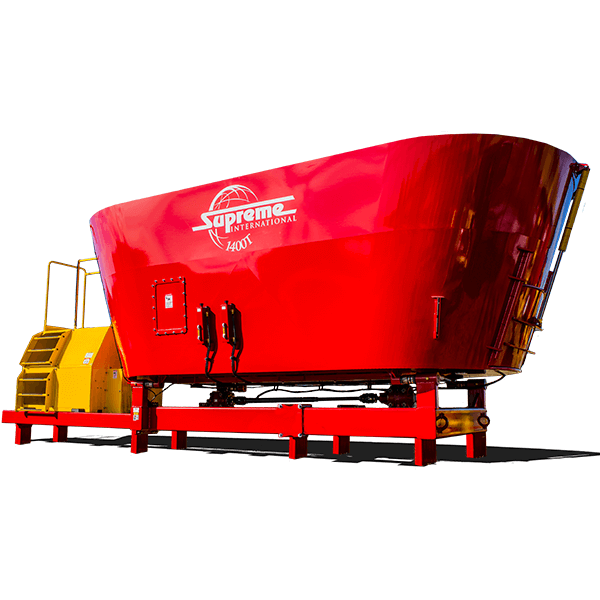

1400TSM MECHANICAL STATIONARY
Agricultural Machinery
Supreme International
FEED MIXERS
Listing Description
The 1400T Mechanical Stationary has a maximum payload of 40,000 lbs (18,144 kg), struck capacity of 1,152 ft³ (32.6 m³) or 1,305 ft³ (37.0 m³) with tub extension, and requires 250 horse power (186 kW).
An energy efficient way to mix your feed – mechanical drive can be powered by electric or diesel power. Like our Pull-Type models, our Mechanical Stationaries have robust heavy-duty planetary drives. All stationary models are equipped with end door and fixed chute for easy unloading of mixed wet or dry commodities. Various pedestal heights are available to fit each operation’s requirements.
The 1400T is also available as a pull type and a truck mount.
Minimum Power Requirements: 250 hp / 186 kW
Unit Capacity: Struck Capacity: 1,152 ft³ / 32.6 m³
Capacity with Extension: 1,305 ft³ / 37.0 m³
Capacity with Extension: 1,305 ft³ / 37.0 m³
Empty Weight: 22,748 lbs / 10,318 kg
Max Payload: 40,000 lbs / 18,144 kg

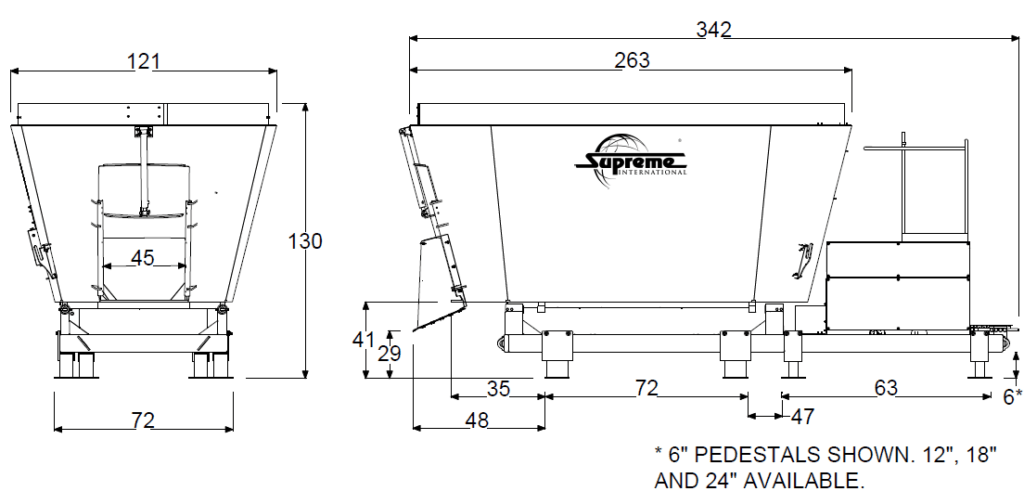

Dimensions: Height w/ 6” Pedestals: 120” / 305 cm
Height w/ 10” Extension: 130” / 330 cm
Overall Width: 121” / 307 cm
Overall Length : 342” / 869 cm
Height w/ 10” Extension: 130” / 330 cm
Overall Width: 121” / 307 cm
Overall Length : 342” / 869 cm

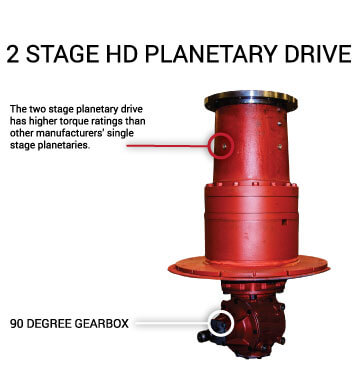

Drive / rpm PTO: Heavy-Duty Planetary Drives
Standard Discharge Ground Clearance: Fixed Chute w/ 6” pedestals: 21” / 53 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Rear Discharge Door
Floor Thickness: 1” / 25 mm M/S Floor
Wall Thickness: 1/4” / 6 mm AR200 Walls
Standards Specifications:

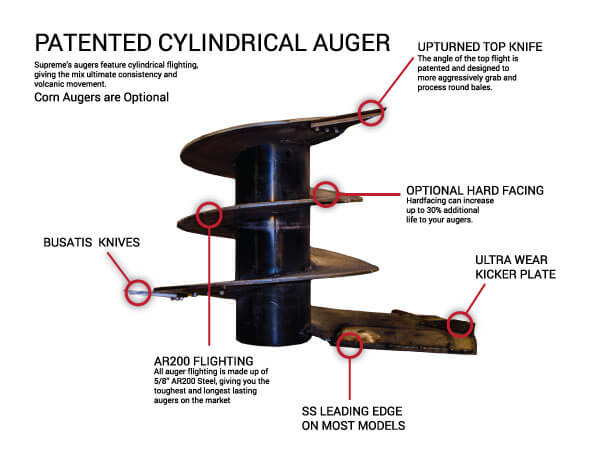

- Two Patented Freestanding Vertical Cutting Augers
- Manual Restrictor Plates
- Ultra Wear Kicker Plates
- Discharge Door
- Viewing Platform
- 5/8” / 16 mm AR200 Auger Flighting
- Scale System
- Tub Mounted Weight Repeater
- Electronic Auger Speed Control
- On Board Pressure and Temperature Monitoring
- High Pressure Shut Down
- High Temperature Shut Down
- Low Oil Shutdown
