JCB 3T-1

JCB 3T-1 3T-1

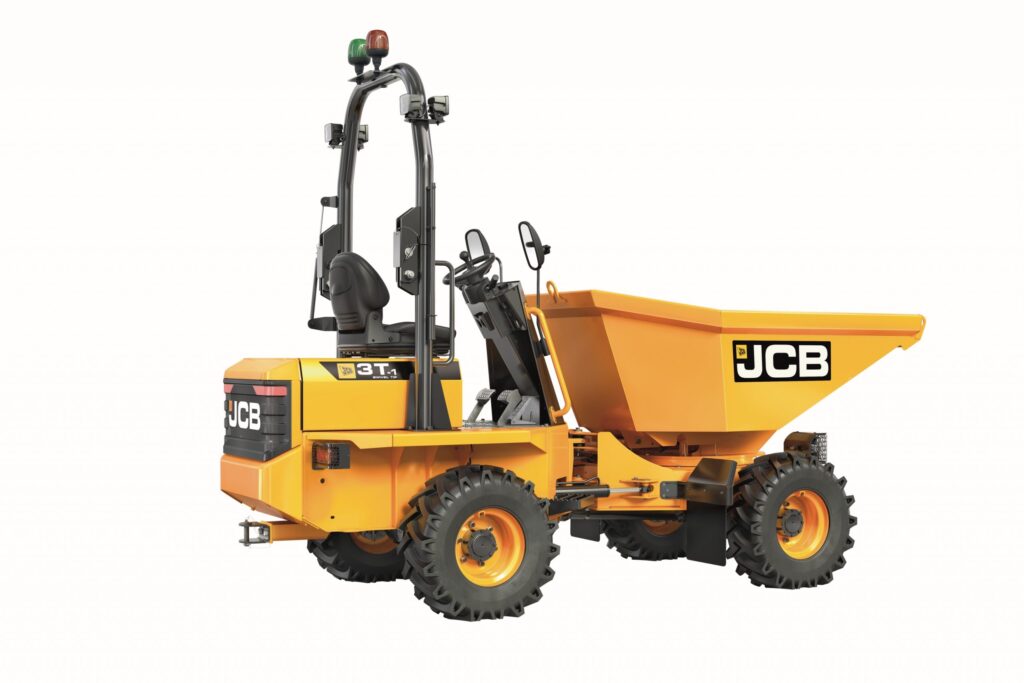

The JCB 3T-1 Site Dumper is a versatile workhorse designed for diverse construction and industrial applications. Packing a powerful punch, it features a 38.8 horsepower (27.4 kW) engine, enabling it to handle demanding tasks with ease. This translates to efficient material transportation, keeping projects on track and within budget.

The JCB 3T-1 offers a user-friendly experience for operators of all skill levels. Its intuitive, automotive-style controls and a clear, uncluttered dashboard make learning and operating the machine a breeze. The 2-speed hydrostatic transmission adds to the smooth operation, offering uninterrupted power delivery for various terrains. Notably, the permanent 4-wheel-drive system ensures excellent traction and manoeuvrability in challenging off-road conditions, promoting safety and productivity.

Safety remains paramount with the JCB 3T-1. The dumper boasts active hydrostatic braking technology, providing superior control and stopping power, particularly crucial on inclines. Additionally, the design prioritises operator visibility, allowing them to maintain full situational awareness. Easy and fast ground-level servicing, facilitated by a tilting seat base and engine canopy, further enhances safety by encouraging regular maintenance and preventing potential hazards.

QUICK SPECS

Payload

3000Kg

Max Engine Power

27.4KW

Operating Weight

2325Kg

BUILD QUALITY AND RELIABILITY

Huge amounts of expertise and innovation have gone into the new range of JCB site dumpers, built ready to tackle anything the rental market can throw at them.

With state-of-the-art manufacturing processes and innovative assembly techniques helping to achieve the very highest levels of build quality. Skip strength is class-leading courtesy of thick steel side walls and heavy duty steel front and base plates.
Heavy duty articulated chassis and skips help your machine withstand the toughest work sites. Finite element analysis and rig testing ensures superior structural strength and durability. Cold cell testing guarantees starting performance down to -15°C.

SAFETY

Exceptional levels of research have gone in to making the JCB site dumper range the safest in the industry, protecting both the operator and your investment.

Featuring an array of safety features including a green LED beacon with seat belt indication, LED front and rear work lights, Hi-Vis yellow painted steps and handles.

A folding, hinged ROPS frame is fitted as standard for operator protection in the event of a machine overturn, and simple, effortless access and egress with 3 points of contact are available at all times. A full width steer column shields the operator from falling material.

ULTIMATE PRODUCTIVITY

Featuring superb comfort, front or swivel tipping options as well as 4WD hydrostatic transmission, these dumpers are built to maximise productivity on any job.

The mechanical injection Kubota D1703 engine is renowned for durability and reliability, while the narrow machine width over tyres of 1650mm provides access to restricted areas.

Maximised manoeuvrability aided by excellent all round visibility.

EASE OF OPERATION

The hydrostatic transmission offers smooth, uninterrupted power delivery, high travel speeds and exceptional off-road performance.

Offering exceptionally easy ground level service access with a tilting seat base providing maximum access to all areas. The seat base is mounted on heavy duty hinges and can be locked for additional security.

Maximised manoeuvrability aided by excellent all-round visibility,  the active hydrostatic braking technology is a huge advantage if you’re using your dumper on gradients.

Features

360° service access through tilting seat-base and rear bonnet

4WD hydrostatic transmission

High quality, dependable mechanical Kubota 27.4 kW engine

Mid-range dumper for a variety of work sites

Superior build quality and best-in-class skip strength

Front or swivel skip types to choose from
