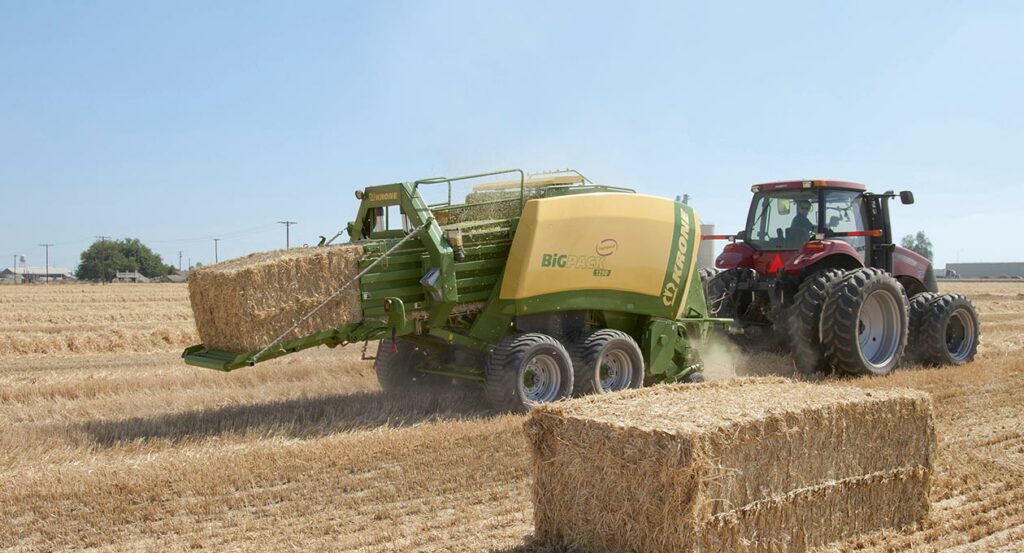

Producing bales 1200mm wide x 900mm high, the Krone BiG Pack 1290 (XC) HighSpeed is the essential tool for farmers or contractors looking for a high quality large square baler.

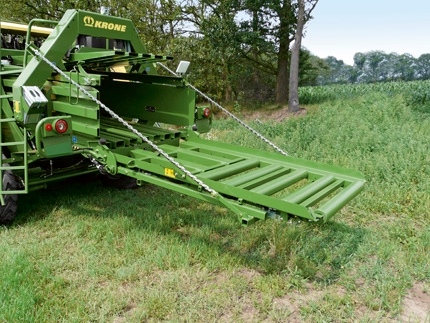

- The secret of the pick up is the wave-shaped design of the tine bands. You get the effect of tine retraction without the cam track drive and it functions without a complex cam track control.
- The EasyFlow pick up runs approximately 30% quicker than conventional systems. It also has 60% fewer moving parts, resulting in less maintenance and services costs.
- Specified with 5 rows of tines that are spaced 55mm apart, the EasyFlow picks up everything at fast forward speeds, increasing your efficiency by ensuring maximum forage pick up.
- Heavy duty gear boxes and drive shafts protected by cam type clutches offer more comfort and productivity. Clutches allow the machine to unblock itself without the need for replacing shear bolts.
- Featuring a large diameter of 550mm, the double tines, (designed in sets of three across the full width of the cutting and feed rotor) pass the crop efficiently across the knives due to the V-shaped arrangement.
- Wide hardox plates on the feed tines result in higher throughputs, clean scissor-like cuts and harder wearing. 20mm wide plates guarantee quality forage.
- X-Cut cutting system has 2 knife drawers with 26 knives on the 1290 XC. The drawers can be lowered hydraulically and then easily pulled out of the machine, to the side, to install and remove the knives
- The Variable Fill System (VFS) unique to Krone offers the highest throughput, 5-phase feed sequence for the bale chamber, offering rock solid and well formed bales, even in small windrows.
- The packer and feeder tines convey the crop into the feed chamber where it’s collected and pre-compressed. When the feed chamber is completely filled, the feeder rake conveys the crop into the bale chamber.
- In case of overload the fully sealed and lubricated cam type clutch will disengage. Reducing throttle speed will clear the blockage and the cam clutch re-engages without stoppages or shear pin replacing.
- Heavy duty gear boxes and drive shafts protected by cam type clutches offer more comfort and productivity. Clutches allow the machine to unblock itself without the need for replacing shear bolts.
- Standard with weight scales, electric bale length adjustment, hydraulic jacks, extra lights on pick up in drawbar, knotter and knotter emergency kit.
- To create heavy bales you need a big flywheel. Krone have created a soft start kit which is a hydraulic motor that creates momentum in the flywheel to remove the stress on the tractor’s PTO.
- Standard on Australian delivered BiG Packs, the CCI IsoBus Touch Screen Monitor offers a range of applications to streamline your business, from entering jobs to creating invoices.
- Colour, high resolution, 8.4 inch touchscreen.
- Optional sensors fitted in the side doors transfer their measurements to the terminal, keeping the operator constantly up to date.
