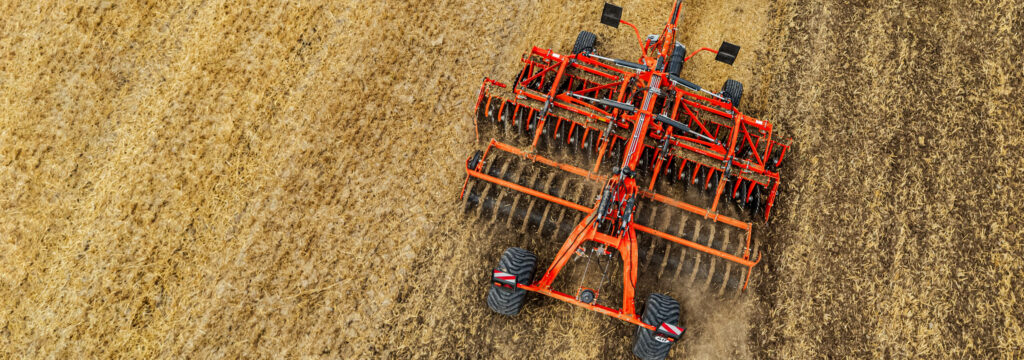

Compact Disc CD2001T Series

Agricultural Machinery
KUBOTA
Compact Discs
CD2401T / CD2501T / CD2601T / CD2701T
Stubble cultivation is vital in conservation tillage: it incorporates weed and volunteer cereal seeds into the soil with intensive mixing and promotes germination for more efficient subsequent treatment. The even incorporation of straw is a key factor for seed germination. The Kubota CD2001T Series of disc cultivators is ready for shallow and deep cultivation and straw mixing. The CD2001T shows excellent performance with large amounts of residue (straw, intermediate green crops etc.) thanks to its small notched conical discs.

Product Features

Available in working widths of 4 m to 7 m, the semi-mounted Kubota CD2001T Series is ready for high performance. Linked to the lifting arms, the CD2001T can be driven by medium-sized tractors even when equipped with heavier rollers like the Actipack. Individual adjustments are easily done, mostly by hydraulics from the tractor cab (depth adjustment, folding/unfolding, spacer lifting). A hydraulic lock prevents unforeseen unfolding, and the strong carriage and 2.75 m width ensure safe road transport. For additional stability on the road, the CD2001T is equipped with hydraulic suspension as standard.

Disc Arms and Discs

The CD2001T Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures at high working speeds.

Sturdy Frame and Headstock

The CD20001T Series is extremely sturdy and fitted with a proven frame from the Kubota cultivator range. With a reinforced headstock main beam of 200 x 300 x 10 mm and a main frame of 100 x 100 x 8 mm, the CD2001T can be equipped with the heaviest roller. Brackets for the roller are fixed at the front bar of the frame for better weight transfer during transport and at higher driving speeds. Due to the small distance between the disc sections, the CD2001T Series requires less lift capacity. Working depth is easily adjusted by spacers at the hydraulic depth cylinders. In addition, the lateral deflectors are foldable to keep transport width in line with road traffic regulations.

Perfect Cutting Quality

The upper part of the CD2001T Series arm is fitted with special brackets to avoid lateral movement, and the cutting angle is fixed to ensure optimum quality even in dry conditions. The rear disc section is offset to the front unit to provide optimum performance and trash incorporation. A rubber shock system adjusts to the size of the disc and working speed and the maintenance-free arms are mounted between rubber buffers to absorb shock from contact with obstacles. In addition, the notched discs improve penetration and rotation irrespective of plant residues.

Choice of Rear Rollers

Kubota offers a choice of rear rollers, depending on soil specifications, consolidation required, mix of soil and straw, soil surface and available lift capacity. The CD2001T Series offers an optional 550 mm diameter cage roller (weighing 90kg/m) and a heavier 565 mm diameter Actipack roller (220 kg/m) for clod crushing, very firm soil recompaction, and heavy/sticky soil conditions.





Details

Type:
Equipment Showroom
Showroom Range:
Agricultural Machinery
Showroom Categories:
Implements
Showroom Sub-Categories:
Compact Discs
Our Brands:
KUBOTA
